500 ton Hydraulic press S.T.A GALDABINI

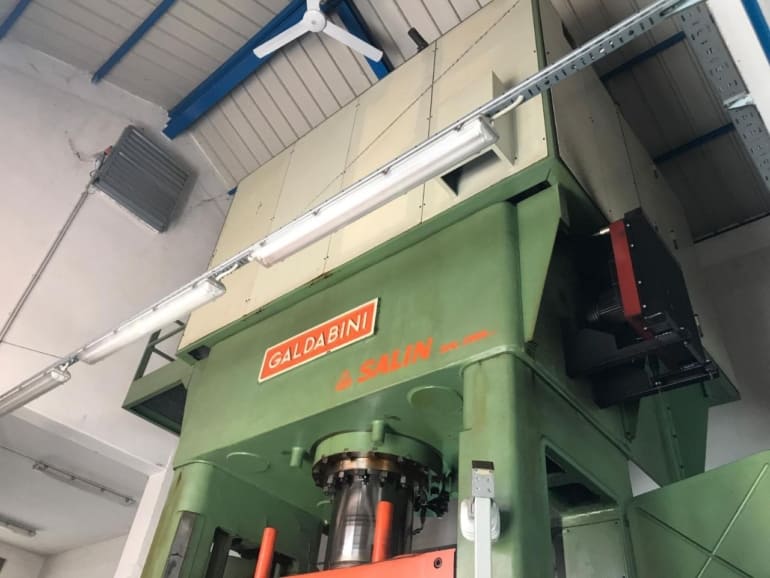

The S.T.A Press GALDABINI 500 ton hydraulic press is a heavy-duty forming machine used for pressing, straightening, deep drawing, die try-out and general metal forming operations where controlled ram speed and stable pressure are required. With up to 1100 mm adjustable stroke and 1700 mm internal vertical space, it is suitable for large tooling, thick sections and press shop applications that demand consistent tonnage throughout the working stroke.
- Photos available (see gallery).
- We can assist with inspection, dismantling and export logistics (subject to availability).
- Please mention the machine ID when requesting an offer: TRG-500-HY-01.
This used hydraulic press by S.T.A Press GALDABINI is designed for industrial workloads where smooth force build-up, precise pressure control and flexible speed settings matter. Compared to mechanical presses, a hydraulic system can deliver full force across a wide portion of the stroke, which is especially valuable for forming, pressing and straightening tasks, as well as die setting and tool try-outs in metalworking plants.

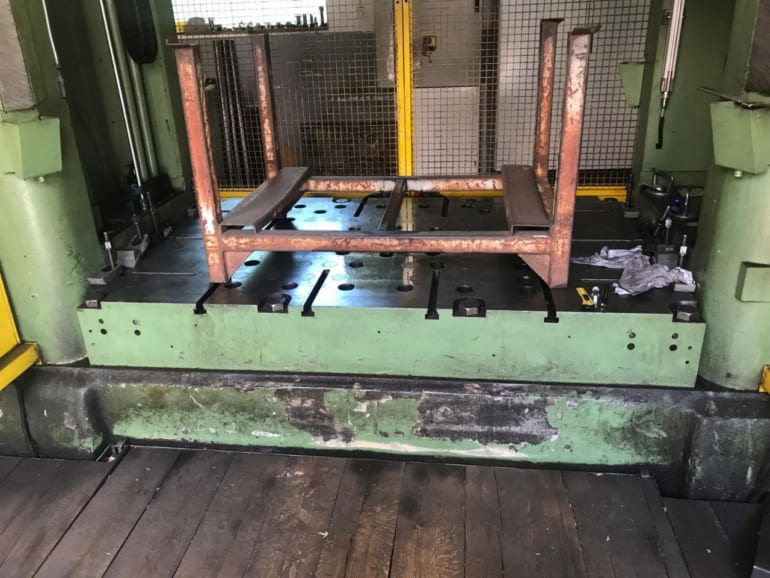

The machine features a wide working area (2100 mm horizontal width) and a large bed (2000 × 1400 mm base dimensions), supporting sizeable dies and fixtures. With a maximum working pressure of 238 bar and an adjustable path up to 1100 mm, this press can be configured for different cycle profiles. The listed approach speeds at various loads (220–500 tons) indicate a controlled ram motion typical for production forming and workshop operations where repeatable results and safe handling are required.
Availability changes — if you are looking for a 500 ton hydraulic press or a similar GALDABINI press, contact us and we will suggest comparable machines, including options for inspection, dismantling, packing and international shipment.
